TMT187 head mounted temperature transmitter RTD TC input

Brand Name : SENSE

Model Number : TMT187

Certification : HART, CE

Place of Origin : Shanghai China

MOQ : 10PCS

Payment Terms : T/T

Supply Ability : 10000PCS / Month

Delivery Time : 5-8 workdays

Packaging Details : Carton packing

Power Supply : 7.5 to 45V DC

Input : RTD and TC

Output : 4-20mA

Mounting : Head mounted

Operating Temperature : -40 to +100 °C

Storage Temperature : -40 to +85 °C

Protection Rating : IP00

Weight : 90 g

Housing Material : Plastic

Signal Transmission : 2-wire

Response time : ≤ 1s

Accuracy : ±0.1% of span

Contact Now

TMT187 head mounted temperature transmitter RTD TC input

  • Head mounted temperature transmitter TMT187 for resistance thermometers(RTD),thermocouples(TC), resistance and voltage transmitters,settable via HART-protocol
  • High performance, high reliability
  • Variety of sensor inputs
  • Hart Digital communication
  • Self-diagnostics function
Application areas
  • Head mounted temperature transmitter with HART- protocol for converting various input signals into a scalable 4 to 20 mA analogue output signal
Performance
  • Settings with HART-protocol for various input signals
  • 2 wire technology, 4 to 20mA analogue output
  • High accuracy in total ambient temperature range
  • Galvanic isolation
  • An internal temperature sensor for active temperature
  • compensation(For T/C)
  • Wide voltage supply range
  • Customer speciϐic measurement range settings
  • Expanded resistance input (max. 2KΩ)
  • Expanded voltage input (max. 2KmV)

Input
  • Resistance thermometer (RTD)
  • Thermocouple (TC)
Input Type Measurement Ranges Min.meas.ranges
Resistance thermonmeter(RTD) PT100 -200℃ to 850℃(-328℉ to 1562℉) 10K
Resistance thermonmeter(RTD) PT1000 -200℃ to 250℃(-328℉ to 482℉) 10K
Connection type: 2-wire, 3wire, 4wire connection
Thermocouples
(TC)		 B(PtR30-PtRh6) 0℃ to 180℃(-32℉ to 3308℉) 500K
Thermocouples
(TC)		 E(NiCr-CuNi) -270℃ to 1000℃(-454℉ to 1832℉) 50K
Thermocouples
(TC)		 J(Fe-CuNi) -210℃ to 1200℃(-346℉ to 2192℉) 50K
Thermocouples
(TC)		 K(NiCr-Ni) -270℃ to 1372℃(-454℉ to 2501℉) 50K
Thermocouples
(TC)		 N(NiCrSi-NiSi) -270℃ to 1300℃(-346℉ to 2372℉) 50K
Thermocouples
(TC)		 R(PtRh13-Pt) -50℃ to 1768℃(-58℉ to 3214.4℉) 500K
Thermocouples
(TC)		 S(PtRh10-Pt) -50℃ to 1768℃(-58℉ to 3214.4℉) 500K
Thermocouples
(TC)		 T(Cu-CuNi) -270℃ to 400℃(-454℉ to 752℉) 50K
► ON Request

Dimensions

TMT187 head mounted temperature transmitter RTD TC input

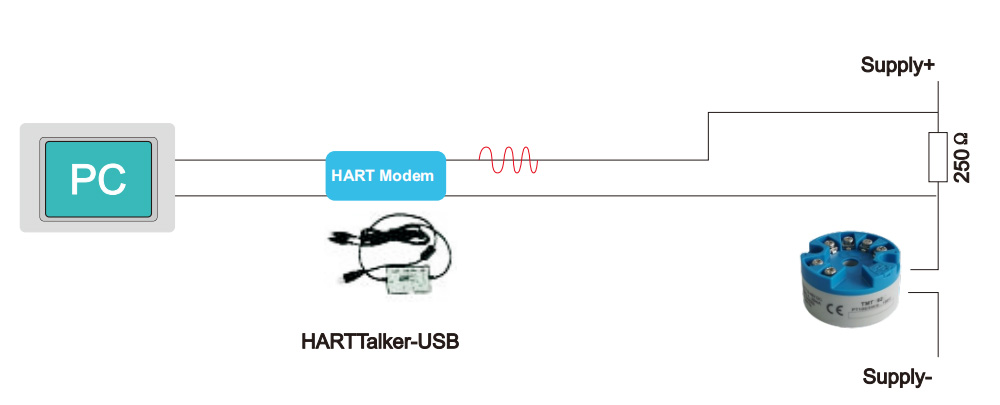

How to programme

TMT187 head mounted temperature transmitter RTD TC input

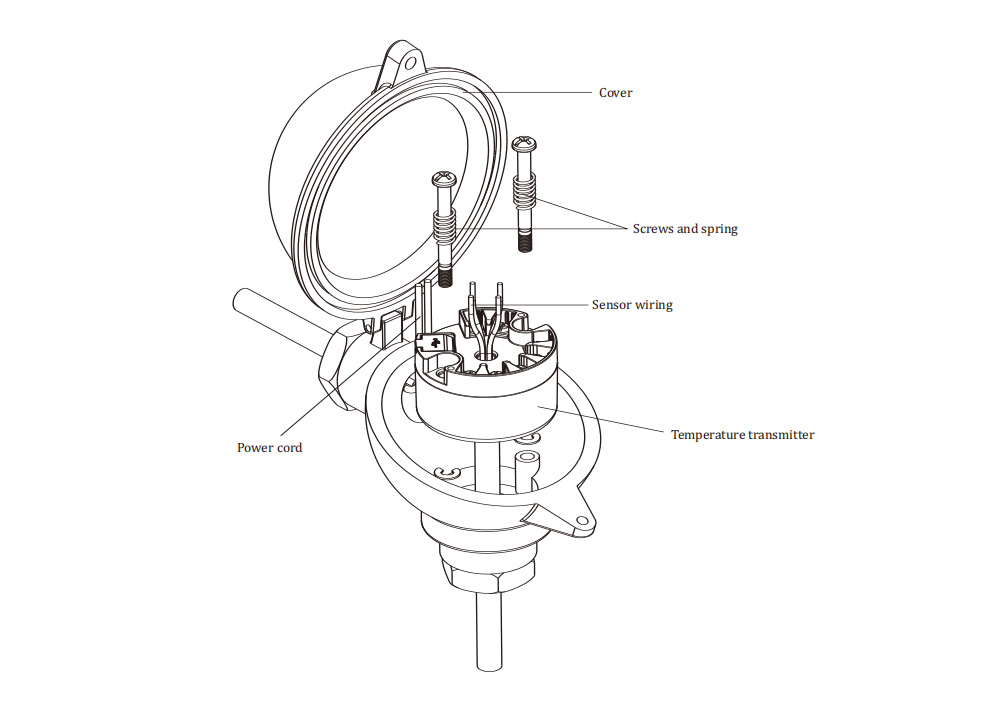

Installation diagram

TMT187 head mounted temperature transmitter RTD TC input
